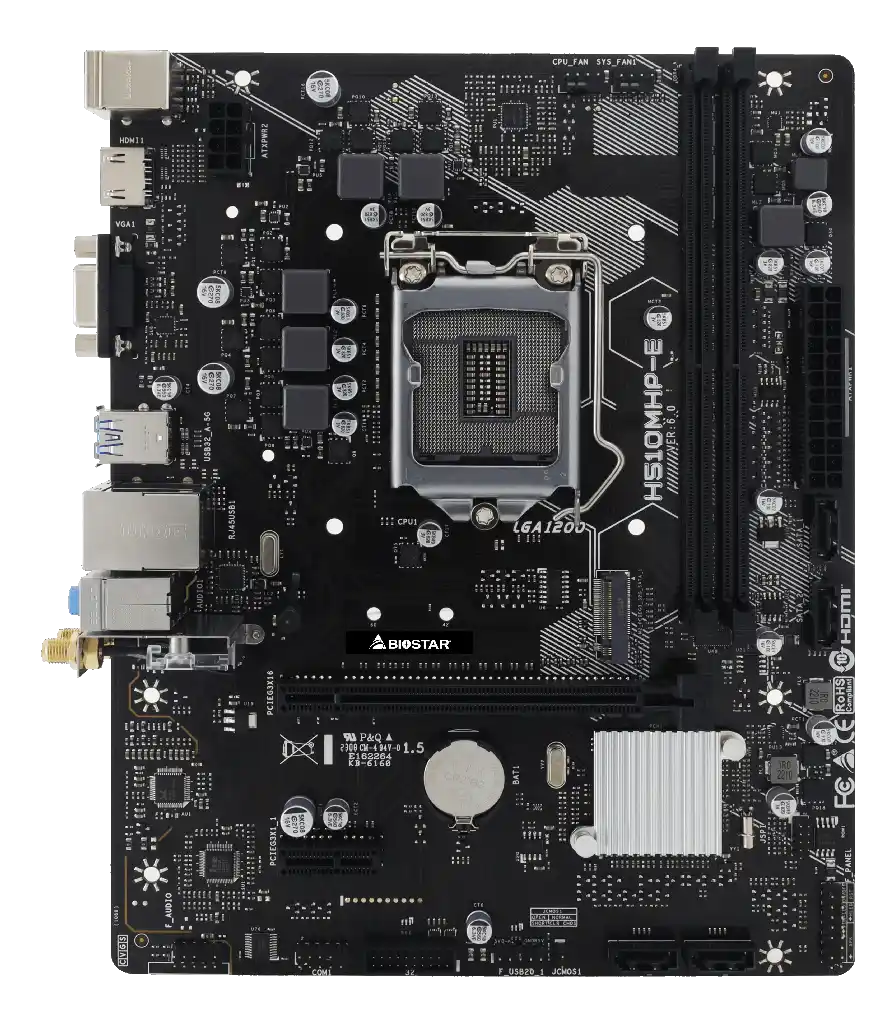

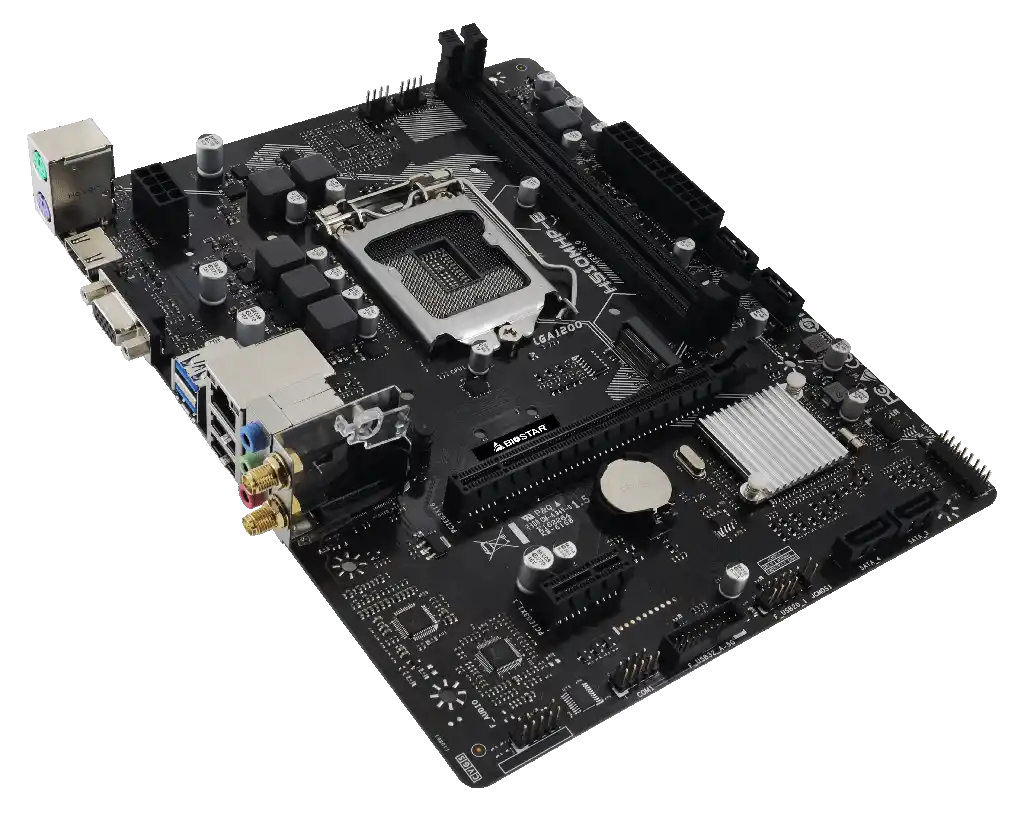

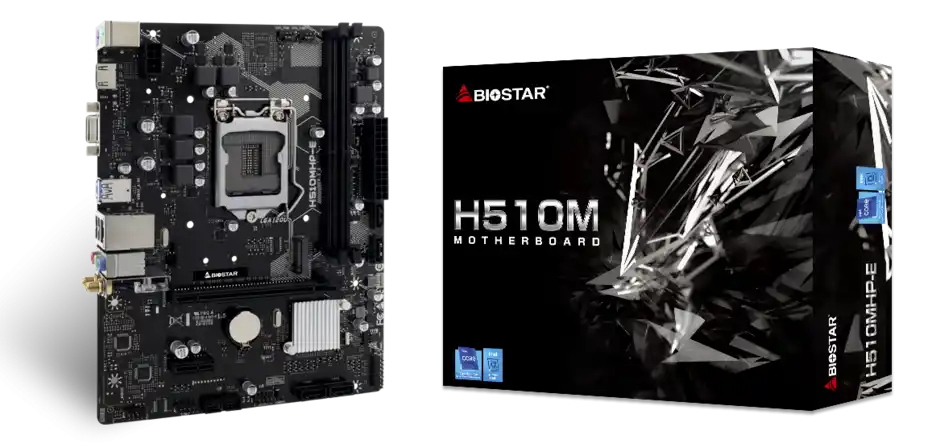

Matična ploča 1200 Biostar H510MHP-E 2.0 VGA/HDMI/M.2

Tip procesora
– Chipset Intel H510
– CPU SUPPORT Socket 1200 for 10th / 11th Gen Intel Core™, Pentium and Celeron processors
Format ploče
– Micro ATX
Memorija
– Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200
– 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
– Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Slotovi za proširenje
– 4 x SATA III Connector (6Gb/s)
– 1 x M.2 (M Key) Socket:
– Supports M.2 Type 2242/ 2260/ 2280 SSD module.
– Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6Gb/s) SSD
– * When using SATA SSD module on PCIe-M2_1 slot, the SATA_1 connector will be disabled.
Zvučna kartica
– CODEC Realtek ALC887
– 7.1 Channels, High Definition Audio
Ostalo
– INTEGRATED VIDEO: Supports DX12
– Supports HDCP
– LAN: Intel I219V
– 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
– USB: 2 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers)
– 6 x USB 2.0 ports (4 on rear I/Os and 2 via internal headers)
– EXPANSION SLOT: 2 x PCIe 3.0 x1 Slot
– 1 x PCle 3.0/4.0 x16 Slot
– *The PCle 4.0 only depends on Rocket Lake CPUs.
– REAR I/O: 1 x PS/2 Keyboard
– 1 x PS/2 Mouse
– 1 x HDMI Port
– 1 x VGA Port
– 2 x USB 3.2 (Gen1) Ports
– 4 x USB 2.0 Ports
– 1 x LAN port
– 3 x Audio Jack
– INTERNAL I/O: 4 x SATA III Connectors (6Gb/s)
– 1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
– 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
– 1 x 8-Pin Power Connector
– 1 x 24-Pin Power Connector
– 1 x CPU Fan Connector
– 1 x System Fan Connector
– 1 x Front Panel Header
– 1 x Front Audio Header
– 1 x Clear CMOS Header
– 1 x COM Port Header
Garancija
– 2 godine
